Characteristics and applications
TL (LT) pin coupling with elastic sleeve features and applications: with compensation of two axis relative offset and damping and buffering performance, simple structure, easy manufacture, convenient maintenance, no lubrication, radial large size, suitable for mounting on the rigid base, high precision, little impact load, the drive shaft is not the high damping requirements, wide application scope, is China's first standard couplings. It is not applicable to high speed and low speed heavy load conditions. Related products
TL (LT) - basic type;
TLL (LTZ) - with brake wheel type;

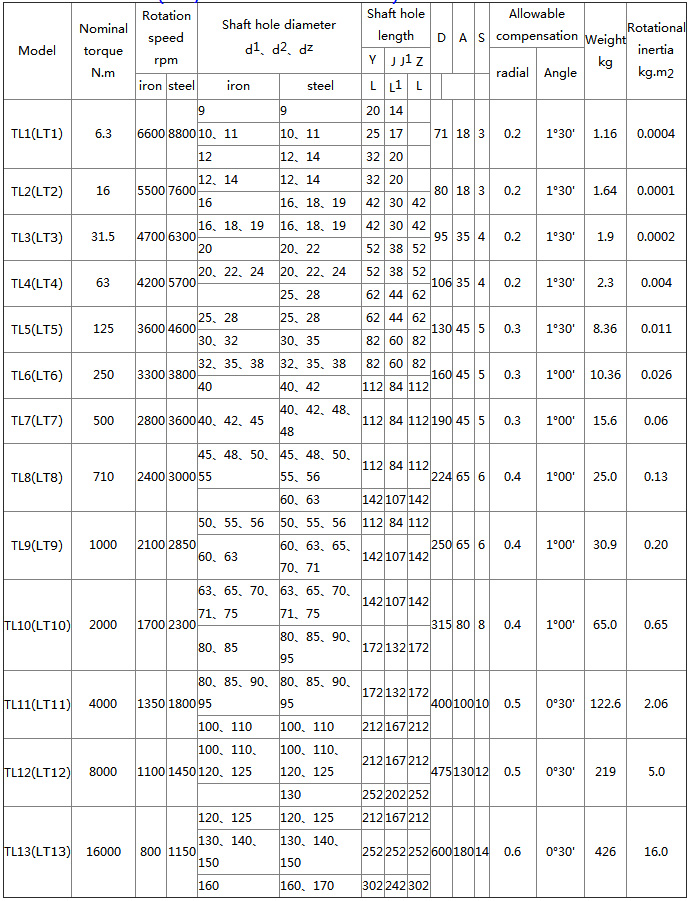

TL (LT) elastic sleeve pin coupling Basic Parameters And Main Dimensions：(GB/T4323-84<2002>) mm
Note:
1. The weight of the couplings in the table is calculated by the minimum diameter and maximum length of the shaft hole.
2. Temporary overload shall not exceed 2 times the nominal torque value.
3. Axial type and length L and L1 can be selected according to need.
4. The moment of inertia is approximation.
|
