Characteristics and applications

The Falk Steelflex T20 Grid Coupling is a double-flexing, close coupled, general purpose design, engineered to provide the economy and high torque capacity of a gear coupling with the torsional flexibility of an elastomeric coupling. Backed by a 5 year lubrication warranty, the Falk T20 Steelflex coupling requires no periodic maintenance when lubricated with Falk LTG grease at installation. The T20 Steelflex Coupling features a vertically split cover ideal for applications with higher running speeds. Available in 16 sizes ranging from 1020T through 1170T, the T20 Steelflex Coupling is engineered to accomodate torque loads up to 660,000 (lb-in) and shaft diameters up to 14 inches. Click below to configure the T20 Steelflex Grid coupling specific to your application.

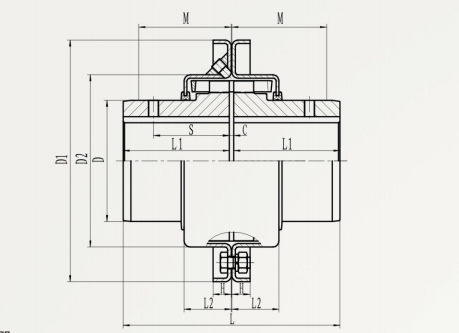

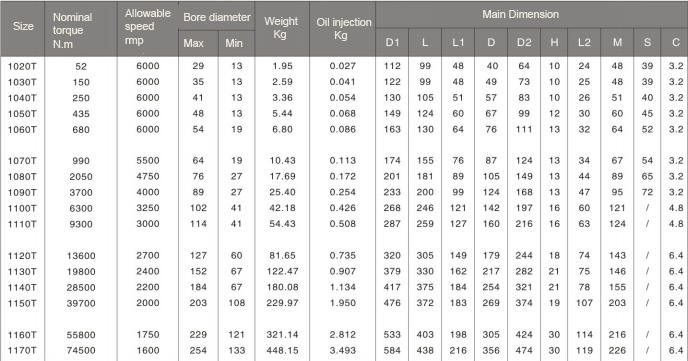

Falk T20 Steelflex Grid Couplings Basic Parameters And Main Dimensions
