Characteristics and applications
The Falk Steelflex T50 Grid Coupling is floating shaft diameters have been preselected to transmit the coupling torque and need only to be checked for allowable speed.

Standard shafts are solid, AISI 1018 or 1020 cold rolled steel. Also available is an optional solid, AISI 1080, fully truned, hot-rolled steel shaft.

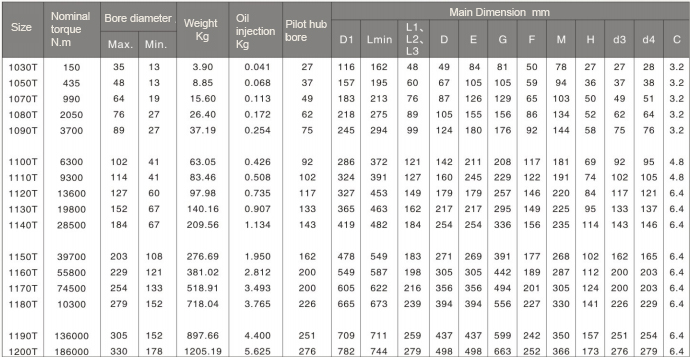

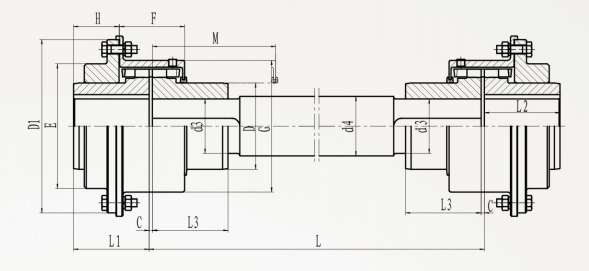

Falk T50 Steelflex Grid Couplings Basic Parameters And Main Dimensions
